IS6806C

Power StageAvailable

Intelligent power stage with integrated driver and power MOSFETs, single-phase capable of carrying 70A

IS6806C

Description

The IS6806C is an intelligent power stage with built-in power MOSFET and gate driver. It can achieve 70A in a single phase. This product supports precise current sampling, temperature sampling and fault alarm functions. It can provide high current performance, excellent thermal performance and highly efficient optimized MOSFET design. The IS6806C is a driver IC with an internal MOSFET gate featuring high current drive capability, adaptive dead-time control and integrated bootstrap switch. The temperature monitor can issue an alarm to the system when the temperature is too high. The current monitor provides real-time current monitoring function (Imon) (the output inductor current is proportionally reduced), is compatible with 3.3V PWM controller, and can enable diode emulation mode under light load by using the GLCTRL signal.

Parameters

Vin Min (V)
2.5
Vin Max (V)
16
Iout (A)
70
VCC (V)
5
vds (V)
-5 ~ 28
Operating Temperature Range (°C)
-40 ~ 125
Package
QFN 5x6

Features

  • Wide input voltage range 2.5V-16V
  • Compatible with 3.3V tri-state PWM signal
  • Single-phase DC output current up to 70A.
  • Supports precise current sampling, temperature sampling, and fault alarm functions.
  • 5mV/A IMON
  • 8mV/°C TMON Temperature Analog Output Report
  • VCC/VDRV Undervoltage Lockout (UVLO)
  • Cycle-by-cycle overcurrent protection with programmable thresholds and fault flags.
  • High-performance transient response achievable at switching frequencies up to 1,500 kHz.
  • Optimize the process for superior conversion efficiency and dynamic load adaptability, balancing power density with volume.
  • High current, high efficiency, low duty cycle operation, and comprehensive fault detection and protection, an ideal choice for high-current multiphase applications.

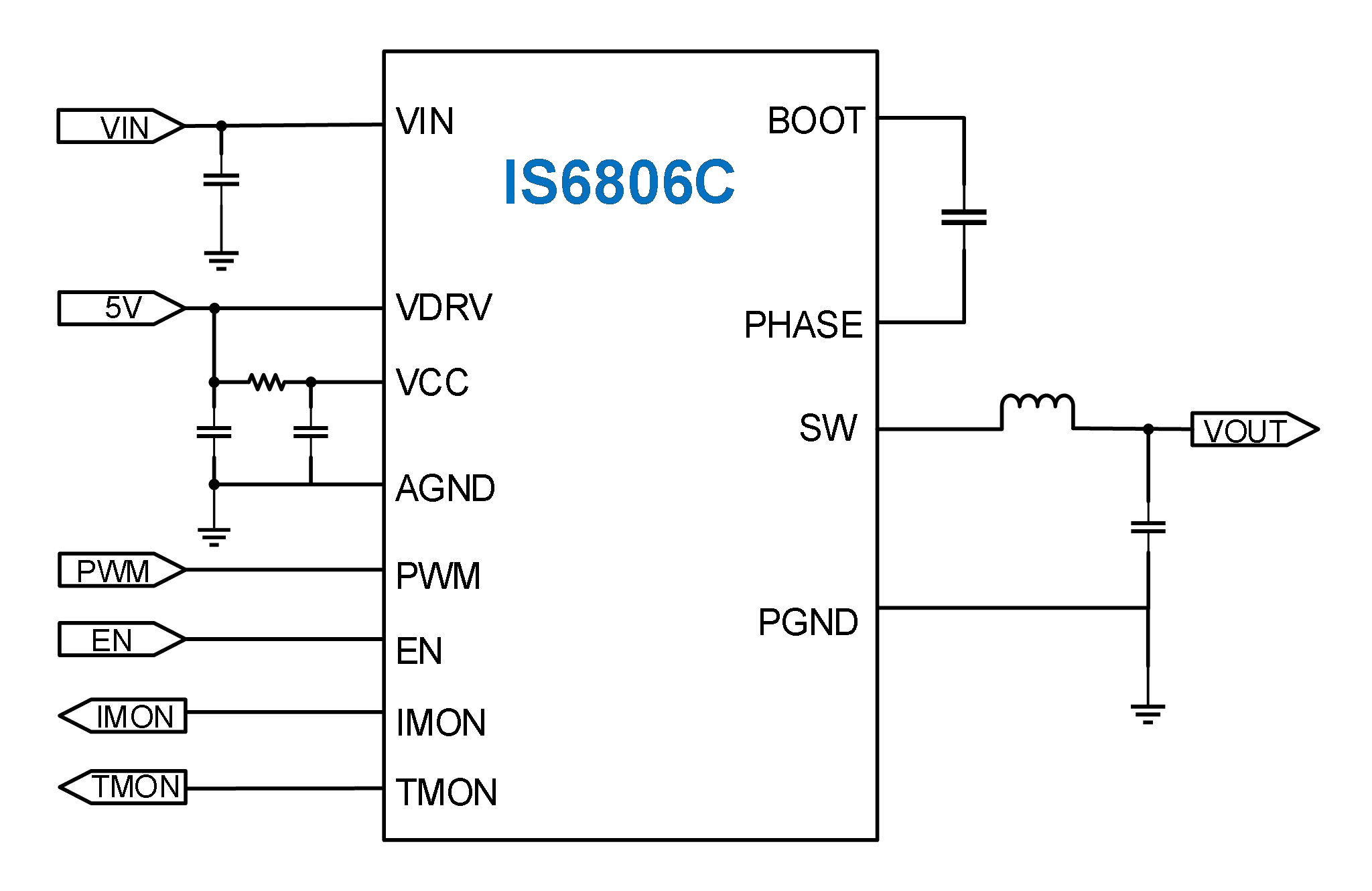

Typical Application Circuit

IS6806C - Typical Application Circuit
